500 Series Induction Cooktop 36'' Without Frame
Brand: Bosch | Model: NIT5663UC
Price: $2,549
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.
500 Series Induction Cooktop
500 Series Induction Cooktop
Features
- Triple Ring Element: Intelligently auto adjusts the element to the size of your cookware from 9" up to 13" for optimized cooking.
- Favorite Button: One touch for your two most used cooking settings. Select on Home Connect app, and use a long or short press directly on your cooktop.
- Automatic Safety Shut-off: Automatic time limitation will shut off your cooktop if the cooking zone has been in use for a long period of time without any changes, depending on your heat setting.
- Boil water quickly with SpeedBoost®: Adds a boost of power to your burner so you can boil a pot of water faster or heat a pan up quickly to get ready for searing.
- Residual Heat Indicator: Residual heat indication shown on the cooktop with a 'H' for hot to touch or 'h' for warm taking the guesswork out of safety.
Specifications & Dimensions

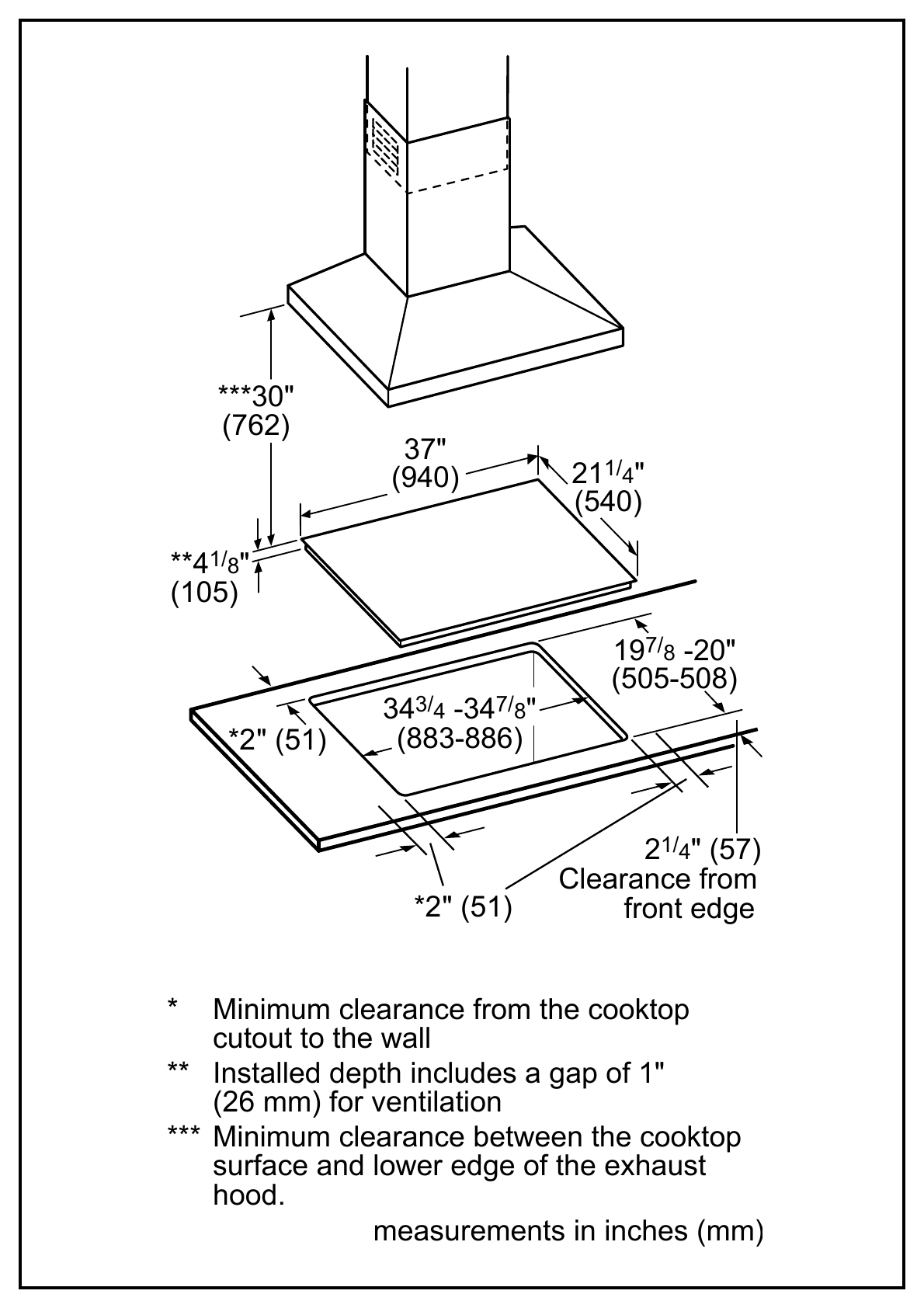

Dimension drawing
Dimensions
| Width | 37 in |
|---|---|
| Depth | 21 1/4 in |
| Nominal width | 36" † |
Capacity & Performance
| Total Number of Heating Elements | 5 † |
|---|---|
| Power Levels | 17 Power Levels † |
Power / Fuel
| Circuit breaker | 40 A |
|---|
Features
| Cooking Zone Flexibility | Triple Zone Element † |
|---|---|
| Color | Black |
| Frame Type | Frameless † |
| Type of Control | Multitouch+ † |
| Automatic Linking/ Separating of Cooking Zones | No † |
| TeppanyakiPro™ | No † |
| Glass protect | No † |
| Timer | Kitchen Timer † |
| Keep Warm | No † |
| Automatic Cookware Detection | No † |
| SpeedBoost® | All † |
| PanBoost | No † |
| Automatic Setting Transfer | No † |
| Increase/ Decrease Power Level via Moving Pot | No † |
| Powermove | No † |
| Cooking Sensor Ready | No † |
| Home Connect™ | Yes † |
| Cooktop-Based Hood Control | No † |
| Residual Heat Indicator | Yes † |
† From the Bosch product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Bosch · NIT5663UC
- Installation guide (PDF) Bosch · NIT5663UC
- Use & care manual (PDF) Bosch · NIT5663UC
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Bosch, model NIT5663UC).
