500 Series Electric Cooktop 30 Without Frame
Brand: Bosch | Model: NEM5066UC
Price: $1,249
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.
500 Series Electric Cooktop
500 Series Electric Cooktop
Features
- Select your ideal temperature: The precise temperature selection results in consistent, perfect results whether you’re searing a steak, grilling salmon or veggies, or delicately melting chocolate.
- Know when the surface is hot: For added safety, the control panel also has a heat indicator to let you know which sections are still hot after you finish cooking. Once the surface reaches a safe temperature, the indicator turns off.
- Accomodate different pan sizes: The Dual Cooking Element offers different sized elements to accomodate different sized pots and pans.
Specifications & Dimensions

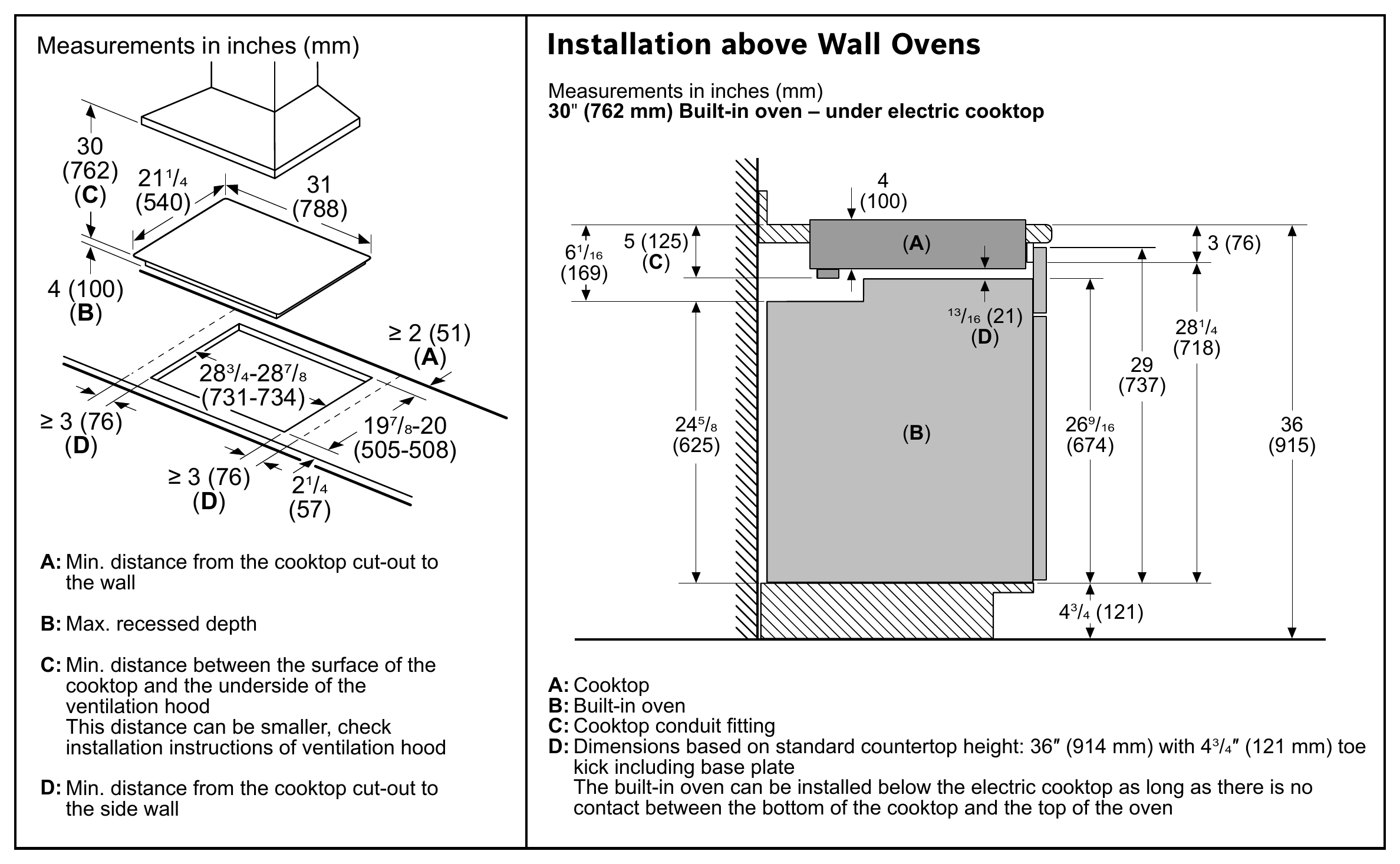

Dimension drawing
Dimensions
| Width | 31 in |
|---|---|
| Depth | 21 1/4 in |
| Nominal width | 30" † |
Cutout
| Cutout height | 4 in |
|---|
Capacity & Performance
| Total Number of Heating Elements | 4 † |
|---|---|
| Power Levels | 9 Power Levels † |
Power / Fuel
| Watts | 7200 W |
|---|
Features
| Cooking Zone Flexibility | Two-ring Cooking Zone † |
|---|---|
| Color | Black Frameless |
| Frame Type | Frameless † |
| Type of Control | Knobs † |
| Automatic Linking/ Separating of Cooking Zones | No † |
| TeppanyakiPro™ | No † |
| Glass protect | No † |
| Keep Warm | No † |
| Automatic Cookware Detection | No † |
| PanBoost | No † |
| Automatic Setting Transfer | No † |
| Increase/ Decrease Power Level via Moving Pot | No † |
| Powermove | No † |
| Cooking Sensor Ready | No † |
| Home Connect™ | No † |
| Cooktop-Based Hood Control | No † |
| Residual Heat Indicator | Yes † |
† From the Bosch product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Bosch · NEM5066UC
- Installation guide (PDF) Bosch · NEM5066UC
- Use & care manual (PDF) Bosch · NEM5066UC
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Bosch, model NEM5066UC).
