Warming Drawer, 30'', WD30W
Brand: Thermador | Model: WD30W | Color: Not Applicable
Price: $2,449
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.
WD30W, Warming Drawer
Innovation SoftClose® drawer door. Ultra smooth closing of the warming drawer Performance Telescopic ball-bearing rails offer smooth handling and support up to 40 lbs Warming mode with 3 convenient temperature settings Special proof mode Automatic shut-off timer Concealed 450-watt heating element Spacious 2.2 cu.ft. cavity can hold and warm up to 28 dinner plates Design Premium touch control
Specifications & Dimensions

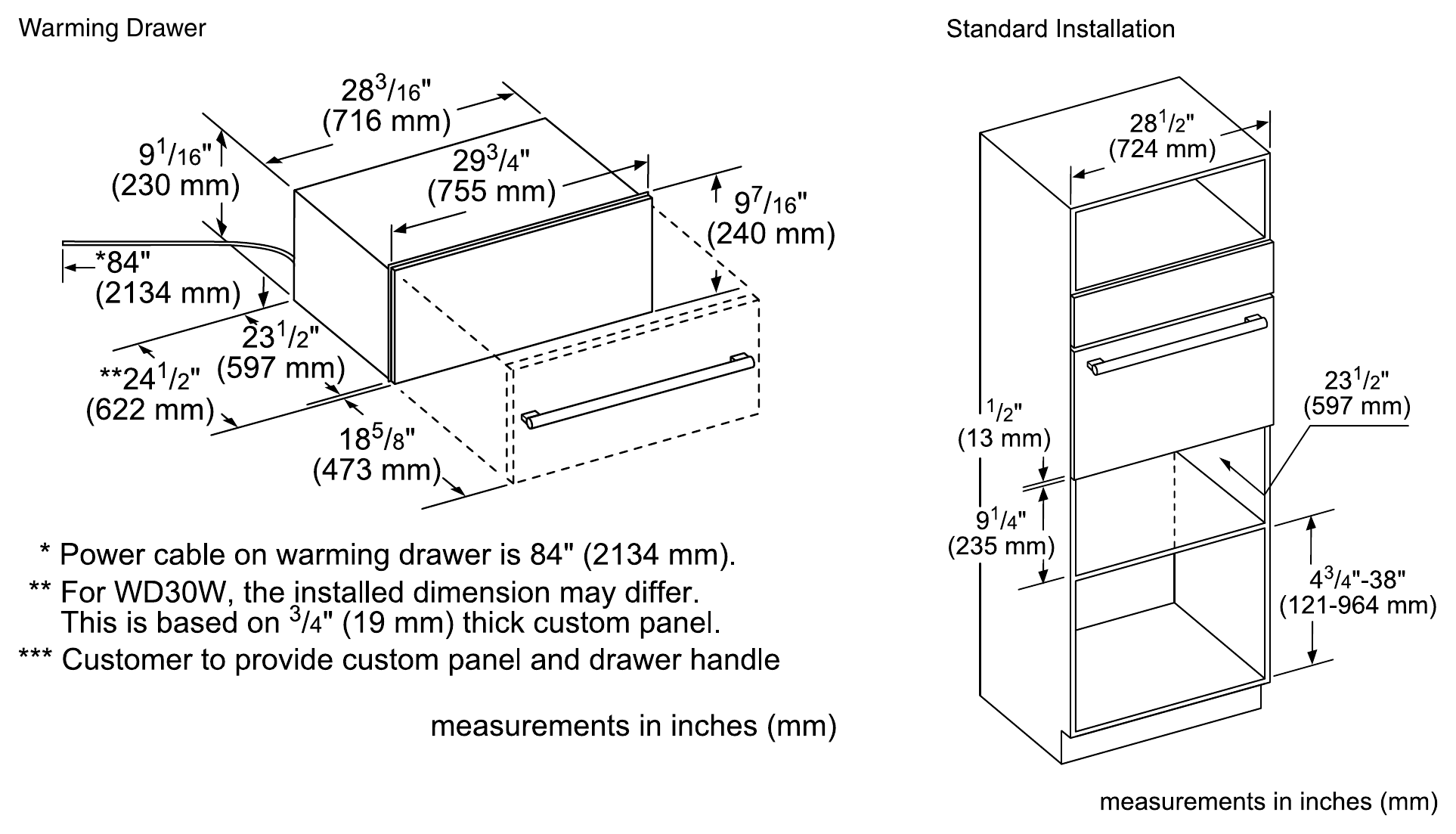

Dimension drawing
Dimensions
| Height | 9 7/16 in |
|---|---|
| Width | 29 3/4 in |
| Net Weight | 55 lb |
Cutout
| Cutout height | 9 1/4 in (standard install; flush install differs, see spec sheet) |
|---|---|
| Cutout width | 28 1/2 in (standard install; flush install differs, see spec sheet) |
| Cutout depth | 23 1/2 in (standard install; flush install differs, see spec sheet) |
Capacity & Performance
| Cavity Capacity | 2.2 cu. ft. |
|---|
Power / Fuel
| Plug Type | 120V 3 Prong |
|---|---|
| Volts | 120 V |
| Amps | 15 A |
| Frequency | 60 Hz |
Features
| Dinner Plate Capacity | 27 † |
|---|---|
| Dinner Plate Diameter | 10 1/2 " † |
| Temperature Settings | 100° – 190° F |
| Proof Mode | Yes |
| Hinges | SoftClose® |
| Automatic Shut Off | After 1 hour |
| Sabbath Mode | No † |
| ADA Compliant (When Installed to ADA requirements) | No † |
| Cavity Dimensions (in) | 7 11/16'' x 21 7/8'' x 20 1/4'' † |
| Home Connect® WiFi-enabled | No † |
Warranty
| Limited warranty (parts & labor) | 2 years |
|---|
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · WD30W
- Installation instructions (PDF) Thermador · WD30W
- Use & care manual (PDF) Thermador · WD30W
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Thermador, model WD30W).
