Professional, Custom Insert Hood, 42'', Stainless Steel, VCIN42GWS
Brand: Thermador | Model: VCIN42GWS
Price: $2,349
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.

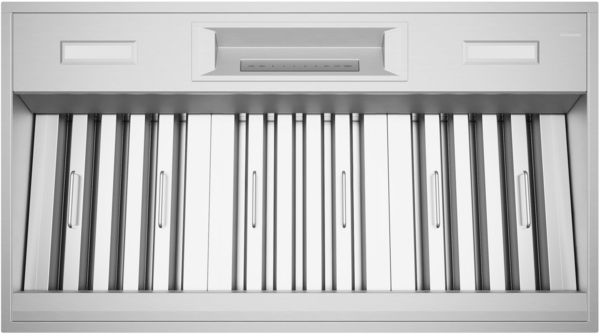

VCIN42GWS, Custom Insert Hood
Innovation Remotely monitor, control, and start through the Home Connect app Flexibility to program custom settings through the Home Connect app Manage Thermador Connected Experience kitchen suite with one network Access tips and tricks on Home Connect app to master every aspect Opt to receive mobile notifications as a reminder to clean filters Performance Select the precise fan speed needed with four different settings Automatic mode detects temperatures to adjust fan speed automatically 10-min delay shut off ensure lingering odor do not interrupt a course Delay shut off time can extend or reduce through Home Connect app Check filter reminder light illuminates after 40 hours of operation Powerfully Quiet® blowers sold separate and needed to complete install Remote or inline blowers to reduce noise, integral for top performance 10" round duct discharge Design Opt for either wall or island applications to suit your style Design match to Thermador Professional Series ranges and range tops Sleek, smooth touch control make cleaning easy with a damp cloth Beautiful illumination with white multiple level LED lighting 0-100% light slider in Home Connect app allows perfect level of light Dishwasher-safe stainless steel, commercial-style baffle filters Built-in remote control panel accessory available, sold separate
Specifications & Dimensions

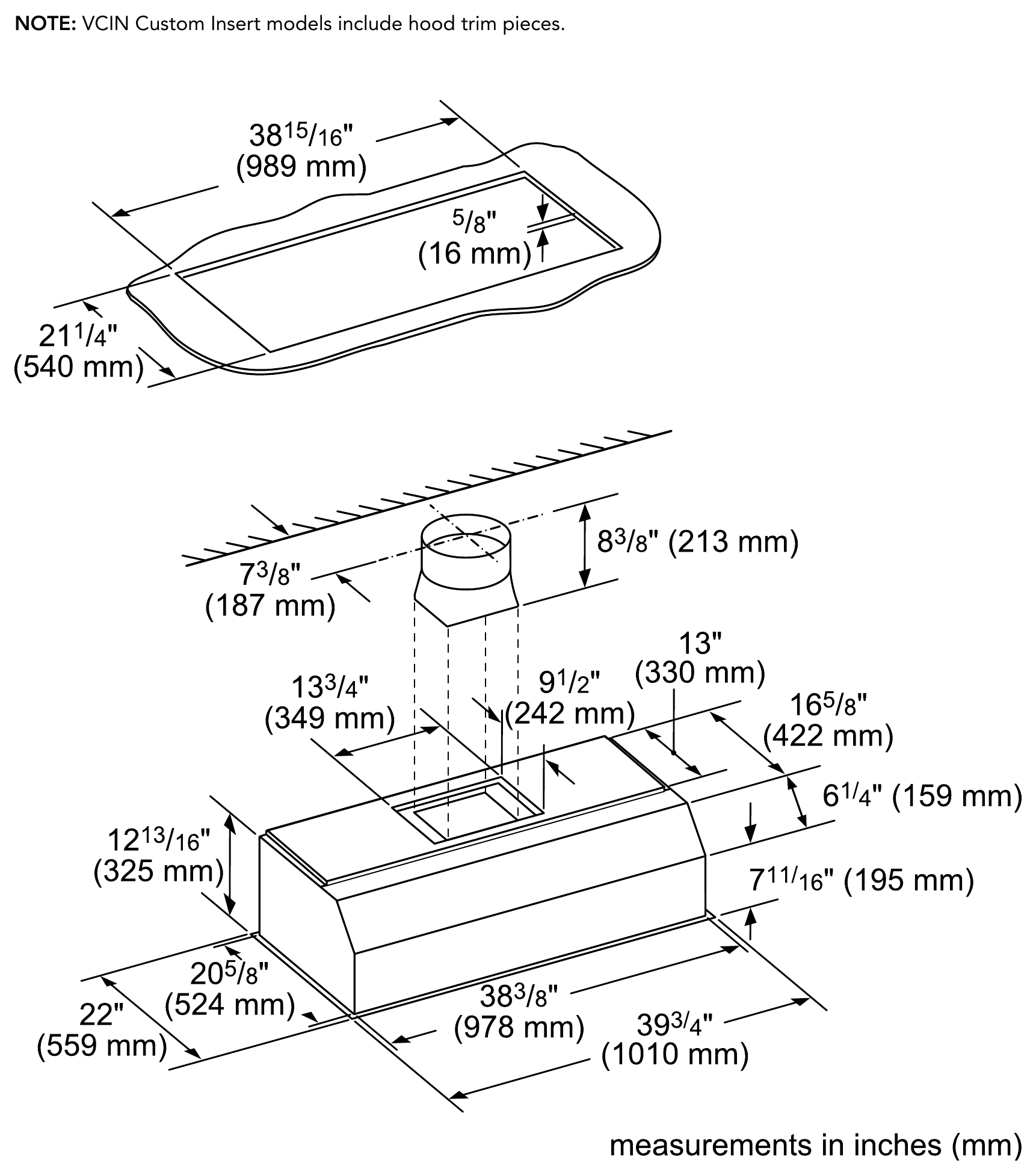

Dimension drawing
Dimensions
| Height | 12 13/16 in |
|---|---|
| Width | 39 3/4 in |
| Depth | 22 in |
| Nominal width | 42" † |
| Net Weight | 77 lb |
| Diameter of Air Duct (Top) | 10 in |
Power / Fuel
| Volts | 120 V |
|---|---|
| Frequency | 60 Hz |
| Plug Type | Fixed Connection |
Features
| Installation Type | Custom insert |
|---|---|
| Venting | Ducted † |
| Material | Stainless Steel † |
| Grease Filter Material | Stainless Steel |
| Filter Type | Commercial Style Baffle Filter |
| Speed Settings | 4 Fan Speeds |
| Minimum distance above cooking surface | 30 in Electric / 30 in Gas |
| Damper | Yes |
| Clean Filter Reminders | Yes |
| Delay Shut Off Modes | Yes |
| Boost Speed | No † |
| Remote Control (Accessory Sold Separately) | Yes |
| ADA Compliant (When Installed to ADA requirements) | No † |
| Light Type | Low Consumption † |
| Number of Lights | 2 |
| Light Lumens | 100 – 150 |
| Light Color | 3500 – 4000 K |
| Heat Lamps | No † |
| Home Connect® WiFi-enabled | Yes |
| Home Connect® Features | Remote Monitoring and Control † |
| Cooktop Hood Sync | No † |
Warranty
| Limited warranty (parts & labor) | 2 years |
|---|
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · VCIN42GWS
- Installation instructions (PDF) Thermador · VCIN42GWS
- Use & care manual (PDF) Thermador · covers multiple models (exact model not printed)
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Thermador, model VCIN42GWS).
