Masterpiece®, Custom Insert Hood, 36'', Stainless Steel, VCI6B36ZS

Brand: Thermador | Model: VCI6B36ZS

Price: $1,849

Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy

Delivery within 100 miles of our store; we'll call to schedule.

VCI6B36ZS, Custom Insert Hood

Innovation Cooktop Hood Sync allows hood control on Freedom® cooktop touchscreen Cooktop Hood Sync enables hood activation once Freedom® cooktop is on Remotely monitor, control, and start through the Home Connect app Flexibility to program custom settings the through Home Connect app Manage Thermador Connected Experience kitchen suite with one network Access tips and tricks on Home Connect app to master every aspect Opt to receive mobile notifications as a reminder to clean filters Performance Suitable for wall or island applications Select the precise fan speed needed with four different settings Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation Delayed shut off tackles lingering odors for up to 10 minutes Filter systems are highly efficient at capturing grease Perimetric design allows for efficient capture of smoke and steam Powerfully Quiet® ventilation systems Design Beautiful illumination with white multiple level LED lighting Recessed control set at an angle for easy view-ability and completely flush design Built-in remote control panel accessory available, sold separate

Specifications & Dimensions

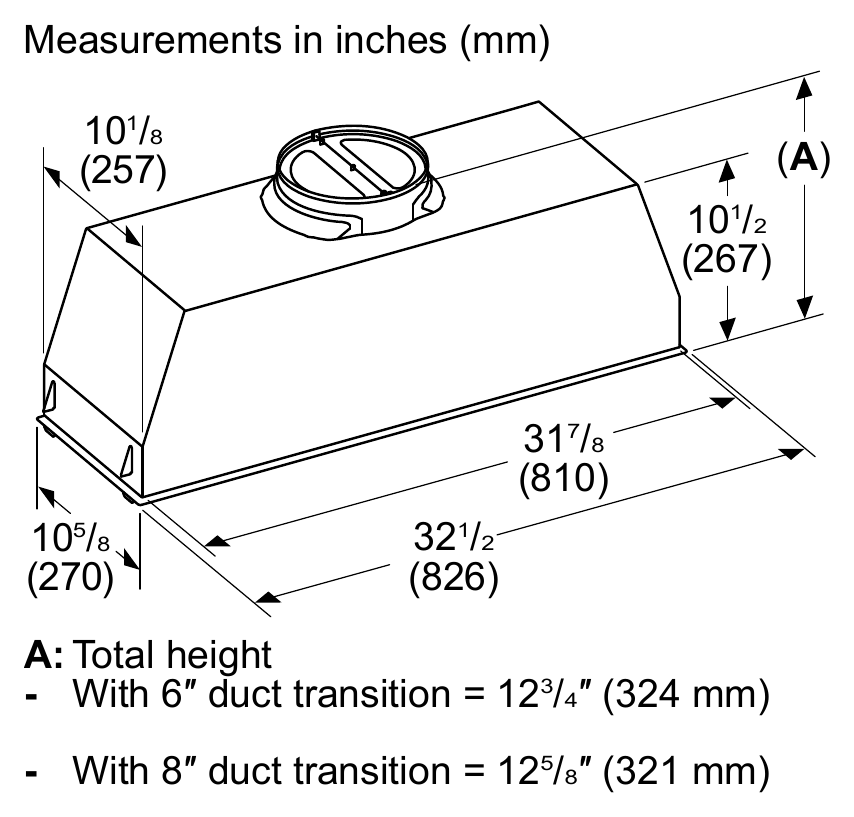

Dimension drawing

Dimensions

Height	10 1/2 in
Width	32 1/2 in
Depth	10 5/8 in
Nominal width	36" †
Net Weight	27 lb
Diameter of Air Duct (Top)	8 in

Capacity & Performance

Blower	600 Series

Power / Fuel

Watts	345 W
Current	3.3 A
Volts	120 V
Frequency	60 Hz
Plug Type	Hardwire

Features

Installation Type	Custom insert
Venting	Ducted: Convertible to Recirculation Mode †
Material	Stainless Steel †
Grease Filter Type	Perimetric
Speed Settings	4 Fan Speeds
Minimum distance above cooking surface	24 in Electric / 30 in Gas
Recommended minimum height (installation guide)	30 in (762 mm); follow the cooking appliance manufacturer's installation instructions for proper hood height
Damper	Yes
Clean Filter Reminders	Yes †
Delay Shut Off Modes	Yes †
Boost Speed	No †
Remote Control (Accessory Sold Separately)	Yes
ADA Compliant (When Installed to ADA requirements)	No †
Light Type	Low Consumption †
Number of Lights	2
Light Lumens	100 – 150
Light Color	3500 – 4000 K
Heat Lamps	No †
Home Connect® WiFi-enabled	Yes
Home Connect® Features	Remote Monitoring and Control †
Cooktop Hood Sync	No †
Motor Location	Integrated Motor

Warranty

Limited warranty (parts & labor)	2 years

† From the Thermador product page (not cross-checked against the specification sheet).

Documents

• Specification sheet (PDF) Thermador · VCI6B36ZS
• Installation instructions (PDF) Thermador · VCI6B36ZS
• Use & care manual (PDF) Thermador · VCI6B36ZS

Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.

Source: Official product page, Official spec sheet PDF, Official installation guide PDF (Thermador, model VCI6B36ZS).
