Masterpiece®, Custom Insert Hood, Stainless Steel, VCI6B30ZS
Brand: Thermador | Model: VCI6B30ZS
Price: $1,799
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.
VCI6B30ZS, Custom Insert Hood
Innovation Cooktop Hood Sync allows hood control on Freedom® cooktop touchscreen Cooktop Hood Sync enables hood activation once Freedom® cooktop is on Remotely monitor, control, and start through the Home Connect app Flexibility to program custom settings the through Home Connect app Manage Thermador Connected Experience kitchen suite with one network Access tips and tricks on Home Connect app to master every aspect Opt to receive mobile notifications as a reminder to clean filters Performance Suitable for wall or island applications Select the precise fan speed needed with four different settings Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation Delayed shut off tackles lingering odors for up to 10 minutes Filter systems are highly efficient at capturing grease Perimetric design allows for efficient capture of smoke and steam Powerfully Quiet® ventilation systems Design Beautiful illumination with white multiple level LED lighting Recessed control set at an angle for easy view-ability and completely flush design Built-in remote control panel accessory available, sold separate
Specifications & Dimensions

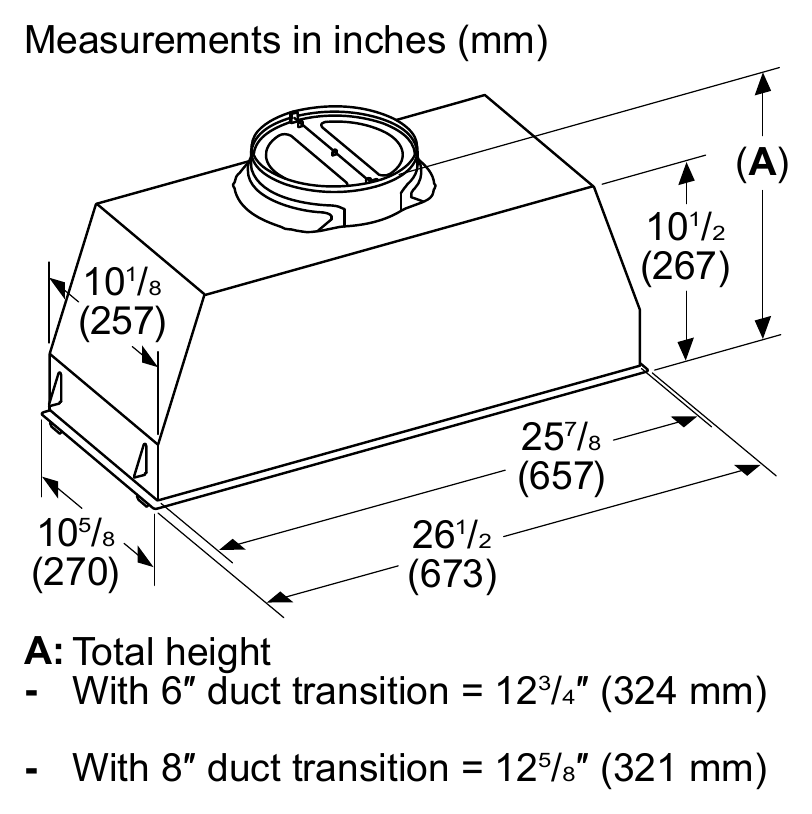

Dimension drawing
Dimensions
| Height | 10 1/2 in |
|---|---|
| Width | 26 1/2 in |
| Depth | 10 5/8 in |
| Net Weight | 24 lb |
| Diameter of Air Duct (Top) | 8 in |
Capacity & Performance
| Blower | 600 Series |
|---|
Power / Fuel
| Watts | 345 W |
|---|---|
| Current | 2.4 A |
| Volts | 120 V |
| Frequency | 60 Hz |
| Plug Type | Hardwire |
Features
| Installation Type | Custom insert |
|---|---|
| Venting | Ducted: Convertible to Recirculation Mode † |
| Material | Stainless Steel † |
| Grease Filter Type | Perimetric |
| Speed Settings | 4 Fan Speeds |
| Minimum distance above cooking surface | 24 in Electric / 30 in Gas |
| Recommended minimum height (installation guide) | 30 in (762 mm); follow the cooking appliance manufacturer's installation instructions for proper hood height |
| Damper | Yes |
| Clean Filter Reminders | Yes † |
| Delay Shut Off Modes | Yes † |
| Boost Speed | No † |
| Remote Control (Accessory Sold Separately) | Yes |
| ADA Compliant (When Installed to ADA requirements) | No † |
| Light Type | Low Consumption † |
| Number of Lights | 2 |
| Light Lumens | 100 – 150 |
| Light Color | 3500 – 4000 K |
| Heat Lamps | No † |
| Home Connect® WiFi-enabled | Yes |
| Home Connect® Features | Remote Monitoring and Control † |
| Cooktop Hood Sync | No † |
| Motor Location | Integrated Motor |
Warranty
| Limited warranty (parts & labor) | 2 years |
|---|
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · VCI6B30ZS
- Installation instructions (PDF) Thermador · VCI6B30ZS
- Use & care manual (PDF) Thermador · VCI6B30ZS
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF, Official installation guide PDF (Thermador, model VCI6B30ZS).
