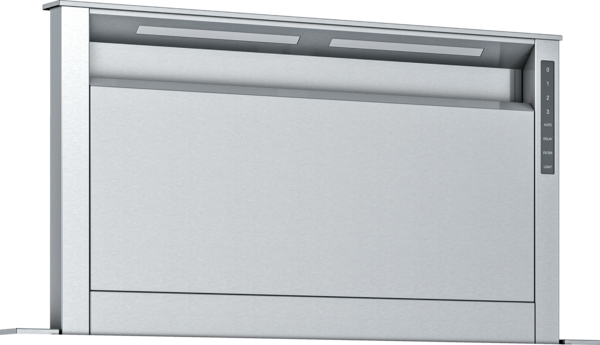

Masterpiece®, 37'', Stainless Steel, UCVP36XS
Brand: Thermador | Model: UCVP36XS
Price: $2,649
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.
UCVP36XS,
36-Inch Masterpiece® Downdraft Performance Designed to create the ultimate cooking system with Thermador cooktops Downdraft rises 18" to capture heat, grease and steam from pots Powerfully Quiet® and efficient in operation at 1.2 sones on low speed Sleek, removeable front filter panel that acts as a splatter shield Grease mesh filters are dishwasher safe and easy to clean Select the precise fan speed needed with four different settings Automatic mode detects temperatures to adjust fan speed automatically 10-min delay shut-off ensure lingering odors are whisked away Check filter reminder light illuminates after 40 hours of operation Recirculation kit available, use with induction/electric cooktops only Some blower positions may need deeper cabinets. See installation guide Blowers sold separately and required to complete installation Replacement charcoal filters for recirculation kit sold separately Gas cooktop seal kit required to use with gas cooktops, sold separate Additional accessories may be required for installation, see manual Design Design match to Thermador Masterpiece Series cooktops Suitable for wall or island applications Designed to allow for flexibility to exhaust at sides, front or rear Authentic, brushed stainless steel finish Sleek, smooth touch control make cleaning easy with a damp cloth
Specifications & Dimensions

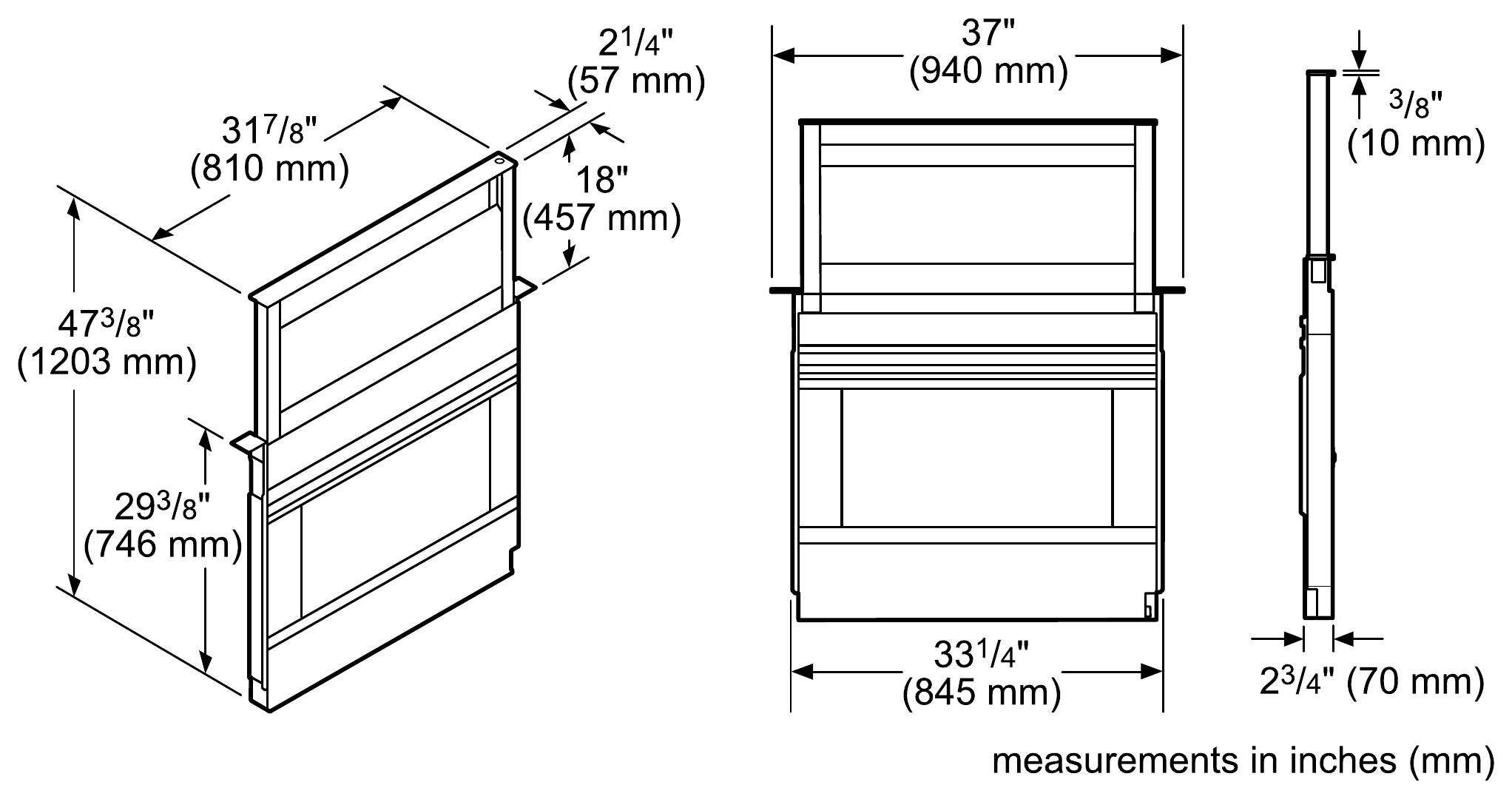

Dimension drawing
The installation guide lists cutout dimension ranges. Confirm cutout dimensions against the installation guide before preparing the cabinet opening. Installation instructions (PDF)
Dimensions
| Width | 37 in |
|---|---|
| Depth | 2 3/4 in |
| Net Weight | 47 lb |
| Diameter of Air Duct (Internal) | 8 in |
| Diameter of Air Duct (External) | 6 in, 8 in or 10 in |
| Height of the Rise | 18 in |
Power / Fuel
| Current | 10 A |
|---|---|
| Volts | 120 V |
| Frequency | 60 Hz |
| Plug Type | 120V-3 prong |
| Power Cord Length | 30 in |
Features
| Venting | Ducted: Convertible to Recirculation Mode † |
|---|---|
| Material | Stainless Steel † |
| Grease Filter Material | Washable Synthetic |
| Grease Filter Type | Multilayer Cassette |
| Speed Settings | 3 Fan Speeds |
| Damper | No |
| Clean Filter Reminders | Yes † |
| Delay Shut Off Modes | Yes † |
| Boost Speed | No † |
| Remote Control (Accessory Sold Separately) | No † |
| ADA Compliant (When Installed to ADA requirements) | No † |
| Light Type | LED † |
| Number of Lights | 2 |
| Light Lumens | 1520 (500 Lux MIN) |
| Light Color | 4000 K |
| Heat Lamps | No † |
| Home Connect® WiFi-enabled | No † |
| Cooktop Hood Sync | No † |
| Motor Location | External |
Warranty
| Limited warranty (parts & labor) | 2 years |
|---|
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · UCVP36XS
- Installation instructions (PDF) Thermador · UCVP36XS
- Use & care manual (PDF) Thermador · UCVP36XS
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Thermador, model UCVP36XS).
