Professional, Wall Hood, 48'', Stainless Steel, PH48HWS
Brand: Thermador | Model: PH48HWS
Price: $2,949
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.

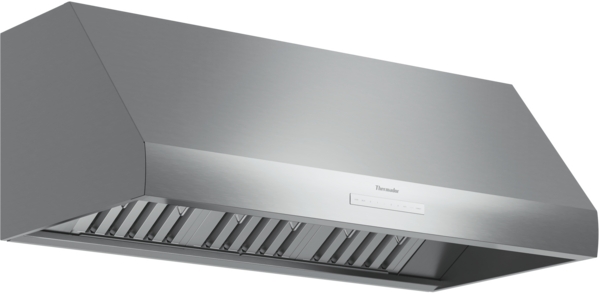

PH48HWS, Wall Hood
Performance Crafted to complete the ultimate cooking system with Thermador ranges Select the precise fan speed needed with four different settings Automatic mode detects temperatures to adjust fan speed automatically 10-min delay shut off ensure lingering odor do not interrupt a course Check filter reminder light illuminates after 40 hours of operation Powerfully Quiet® blowers sold separate and needed to complete install Remote or inline blowers to reduce noise, integral for top performance Vertical or horizontal ducting directions possible 10" round duct discharge Design Design match to Thermador Professional Series ranges and range tops Sleek, smooth touch control make cleaning easy with a damp cloth Beautiful illumination with white multiple level LED lighting Dishwasher-safe stainless steel, commercial-style baffle filters 6" tall duct cover accessory available, sold separate 20"-54" tall telescopic duct cover accessory available, sold separate Built-in remote control panel accessory available, sold separate
Specifications & Dimensions

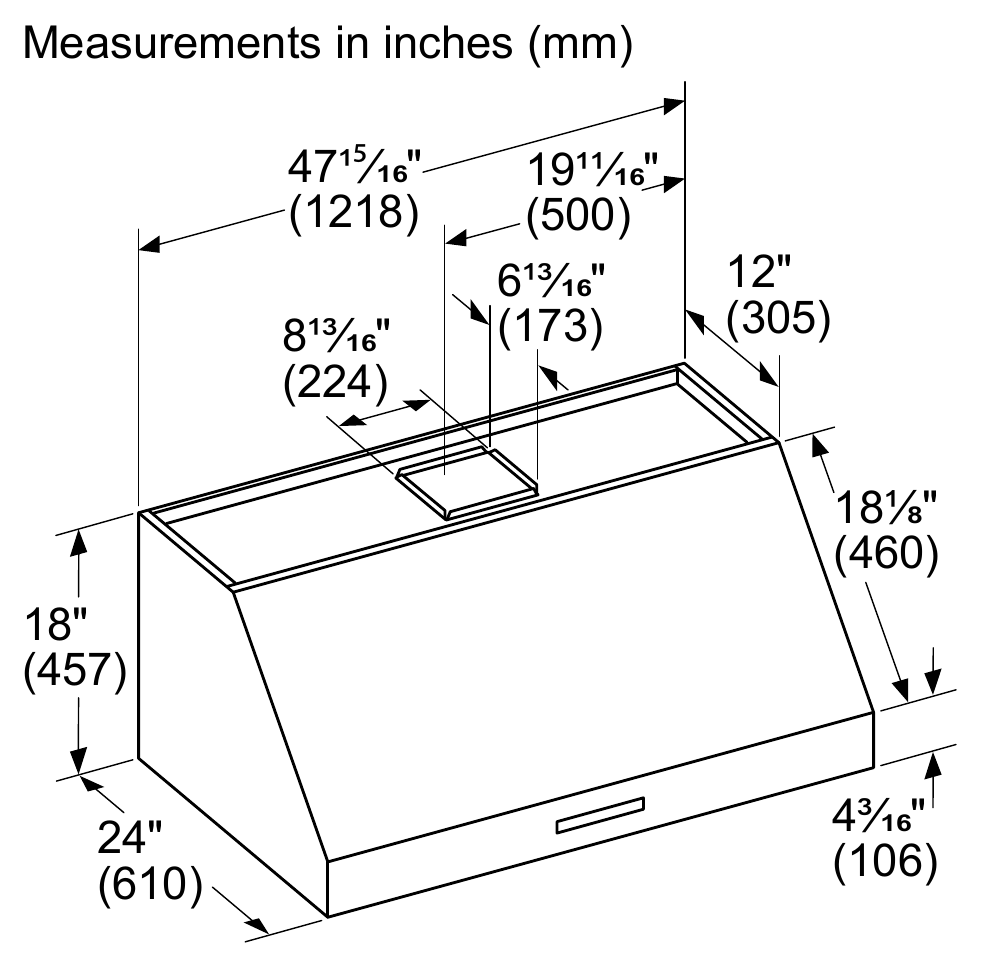

Dimension drawing
Dimensions
| Height | 18 in |
|---|---|
| Width | 47 15/16 in |
| Depth | 24 in |
| Nominal width | 48" † |
| Net Weight | 94 lb |
| Diameter of Air Duct (Top) | 10 in |
| Diameter of Air Duct (Back) | 10 in |
Power / Fuel
| Volts | 120 V |
|---|---|
| Frequency | 60 Hz |
| Plug Type | Fixed Connection |
Features
| Installation Type | Wall hood |
|---|---|
| Venting | Ducted † |
| Material | Stainless Steel † |
| Grease Filter Material | Aluminum |
| Filter Type | Commercial Style Baffle Filter |
| Speed Settings | 4 Fan Speeds |
| Minimum distance above cooking surface (gas / electric) | 30 in / 30 in |
| Damper | Yes |
| Clean Filter Reminders | Yes |
| Delay Shut Off Modes | Yes |
| Boost Speed | No † |
| Remote Control (Accessory Sold Separately) | Yes |
| ADA Compliant (When Installed to ADA requirements) | No † |
| Light Type | Low Consumption † |
| Number of Lights | 4 |
| Light Lumens | 100 – 150 |
| Light Color | 3500 – 4000 K |
| Heat Lamps | No † |
| Home Connect® WiFi-enabled | No |
| Cooktop Hood Sync | No † |
| Motor Location | Blower (Sold Separately) |
Warranty
| Limited warranty (parts & labor) | 2 years |
|---|
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · PH48HWS
- Installation instructions (PDF) Thermador · PH48HWS
- Use & care manual (PDF) Thermador · PH48HWS
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Thermador, model PH48HWS).
