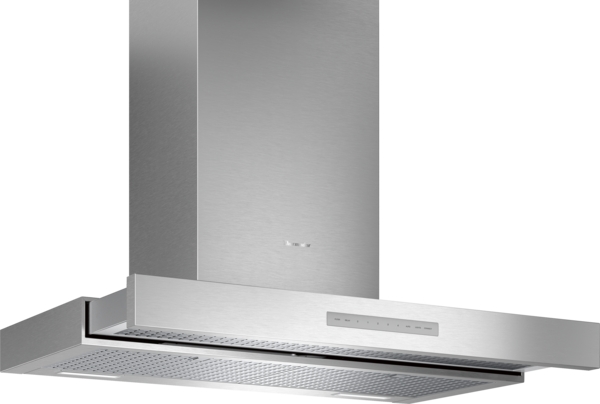

Masterpiece®, Drawer Chimney Wall Hood, 36'', Stainless Steel, HDDB36WS
Brand: Thermador | Model: HDDB36WS
Price: $3,449
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.
HDDB36WS, Drawer Chimney Wall Hood
Innovation Noise Control Deluxe™ reduces noise while fan is in use Cooktop Hood Sync allows hood control on Freedom® cooktop touchscreen Cooktop Hood Sync enables hood activation once Freedom® cooktop is on Remotely monitor, control, and start through the Home Connect app Flexibility to program custom settings the through Home Connect app Manage Thermador Connected Experience kitchen suite with one network Access tips and tricks on Home Connect app to master every aspect Opt to receive mobile notifications as a reminder to clean filters Performance Grease-capturing mesh filters framed by stainless steel 600 CFM blower to match in performance with Masterpiece® cooktops Select the precise fan speed needed with four different settings Automatic mode detects temperatures to adjust fan speed automatically 10-min delay shut off ensure lingering odor do not interrupt a course Delay shut off time can extend or reduce through Home Connect app Check filter reminder light illuminates after 40 hours of operation Convert to recirculation for hard to duct installs, kit sold separate Vertical ducting direction possible 8" round duct discharge Design Sleek, smooth touch control make cleaning easy with a damp cloth Beautiful illumination with white multiple level LED lighting 0-100% light slider in Home Connect app allows perfect level of light Dishwasher-safe hybrid mesh filters with stainless steel frame Chimney extension kit for 9'-12' tall ceilings sold separate Built-in remote control panel accessory available, sold separate
Specifications & Dimensions

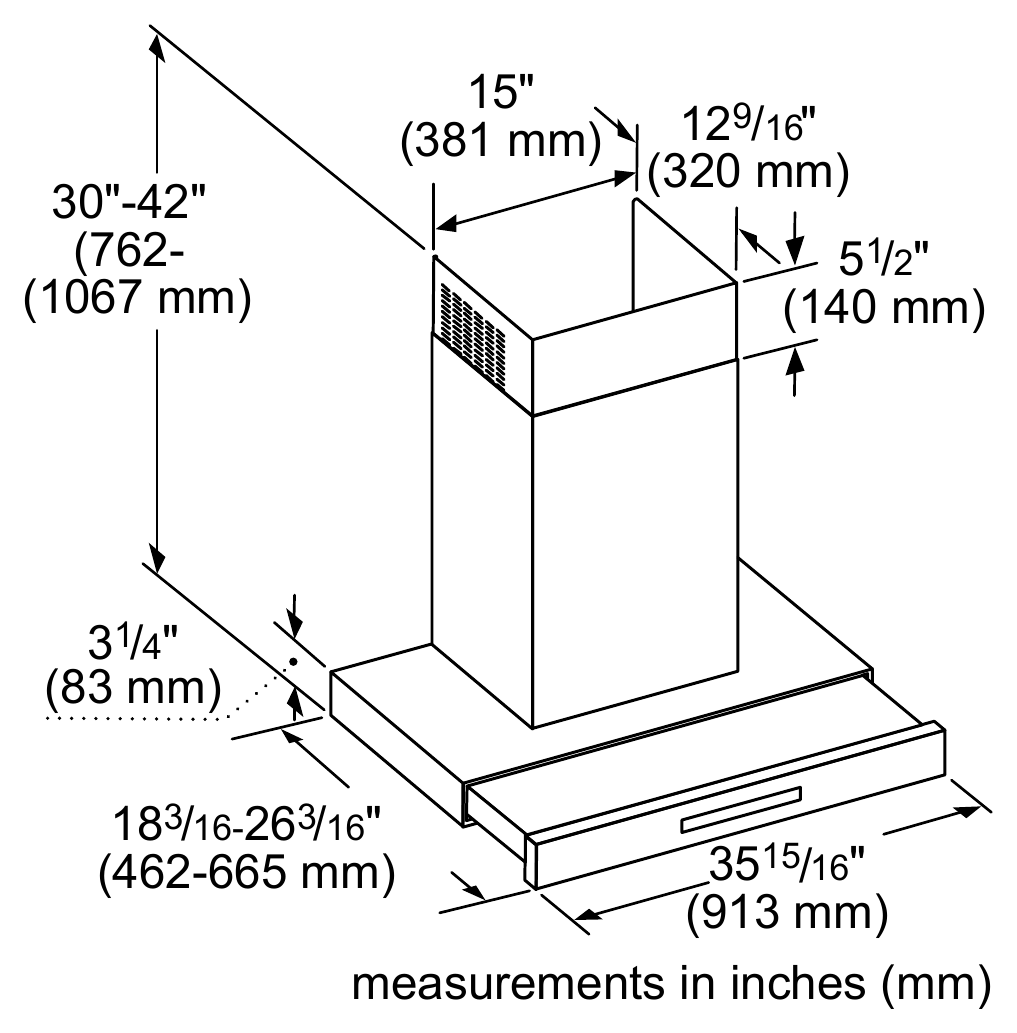

Dimension drawing
Dimensions
| Width | 35 15/16 in |
|---|---|
| Depth (range) | 18 3/16 – 26 3/16 in |
| Nominal width | 36" † |
| Net Weight | 90 lb |
| Diameter of Air Duct (Top) | 8 in |
Capacity & Performance
| Maximum CFM (blower) | 600 CFM |
|---|
Power / Fuel
| Watts | 449 W |
|---|---|
| Current | 15 A |
| Volts | 120 V |
| Frequency | 60 Hz |
| Plug Type | Fixed Connection |
Features
| Installation Type | Wall hood |
|---|---|
| Venting | Ducted: Convertible to Recirculation Mode † |
| Material | Stainless Steel † |
| Filter Type | Hybrid Mesh |
| Speed Settings | 4 Fan Speeds |
| Minimum distance above cooking surface (gas / electric) | 30 in / 30 in |
| Damper | Yes |
| Clean Filter Reminders | Yes |
| Delay Shut Off Modes | Yes |
| Boost Speed | No † |
| Remote Control (Accessory Sold Separately) | Yes |
| ADA Compliant (When Installed to ADA requirements) | No † |
| Light Type | Low Consumption † |
| Number of Lights | 2 |
| Light Lumens | 100 – 150 |
| Light Color | 3500 – 4000 K |
| Heat Lamps | No † |
| Home Connect® WiFi-enabled | Yes |
| Home Connect® Features | Remote Monitoring and Control † |
| Cooktop Hood Sync | Yes |
| Motor Location | Integrated Motor In Hood Body |
Warranty
| Limited warranty (parts & labor) | 2 years |
|---|
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · HDDB36WS
- Installation instructions (PDF) Thermador · HDDB36WS
- Use & care manual (PDF) Thermador · HDDB36WS
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Thermador, model HDDB36WS).
