Masterpiece®, Gas Cooktop, 30'', Stainless Steel, SGSXP305TS
Brand: Thermador | Model: SGSXP305TS | Color: Stainless steel
Price: $2,849
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.
SGSXP305TS, Gas Cooktop
Innovation Patented Star® Burner provides superior flame coverage for faster and more even pan heating Two ExtraLow® Select simmer burners provide precise simmering capabilities QuickClean Base® with a teardrop emboss reduces food buildup near the base and contains liquid spills for quick cleaning Progressive illuminated light ring around each knob indicates burners in use Performance 30" - 5 burner gas cooktop provides functionality of a 36" cooktop in a compact kitchen environment Powerful 18,000 BTU center burner Continuous grates allow pots and pans to move effortlessly across the cooktop Electronic re-ignition will automatically re-ignite the burner in case the flame goes out Knobs feature a safety "push to turn" system STAR-K Sabbath compliant Design Seamless stainless steel burner pan makes for simpler surface cleaning High-grade, quality die cast metal knobs Sleek control panel features glass and stainless steel
Specifications & Dimensions

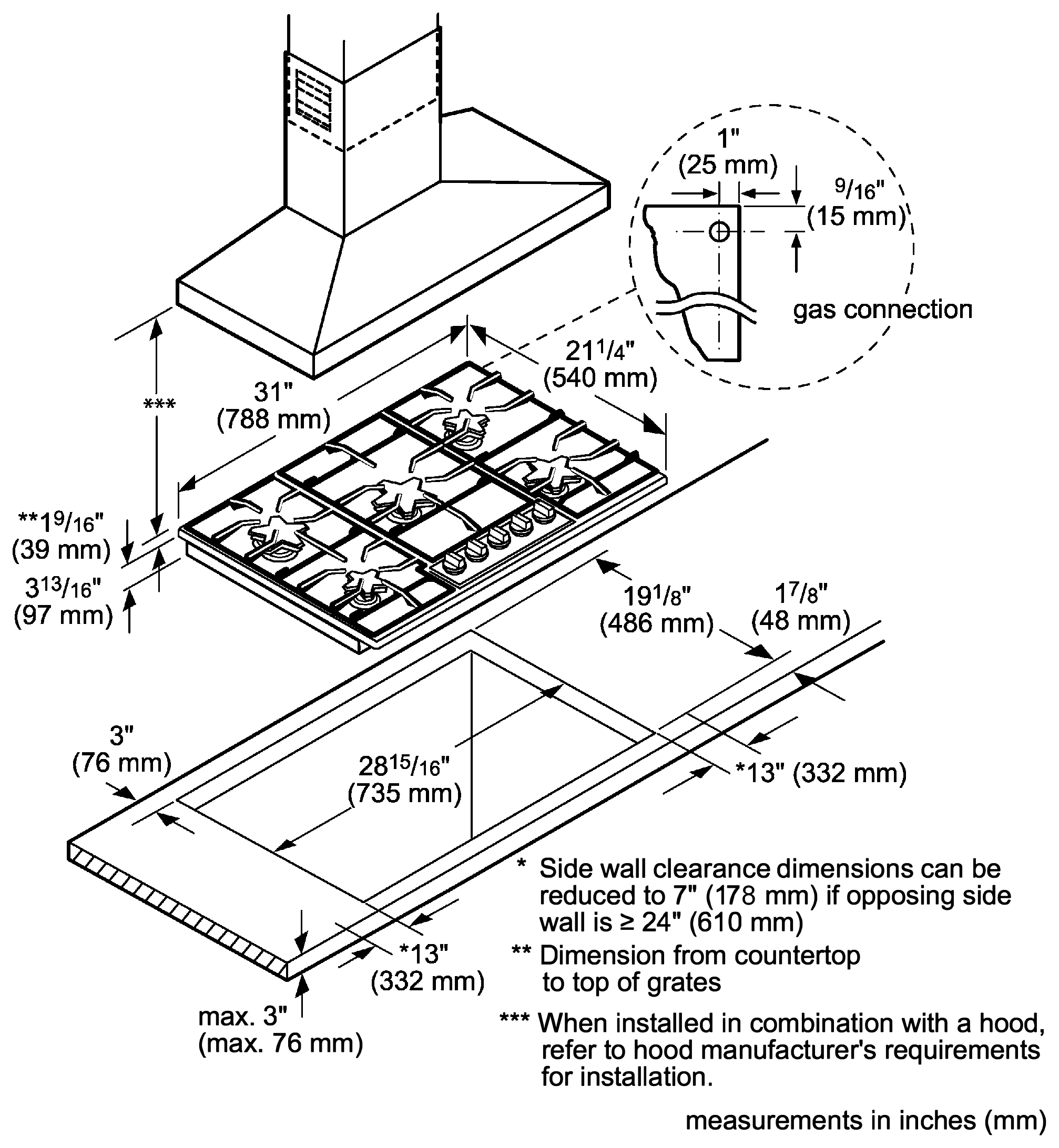

Dimension drawing
Dimensions
| Width | 31 in |
|---|---|
| Depth | 21 1/4 in |
Cutout
| Cutout height | 3 13/16 in |
|---|---|
| Cutout width | 28 15/16 in |
| Cutout depth | 19 1/8 in |
Capacity & Performance
| Number of Gas Burners | 5 † |
|---|---|
| Front left burner | 8,000 / 6,000 BTU (NG / LP) |
| Back left burner | 10,000 / 9,100 BTU (NG / LP) |
| Center burner | 18,000 / 15,000 BTU (NG / LP) |
| Back right burner | 8,000 / 6,000 BTU (NG / LP) |
| Front right burner | 10,000 / 9,100 BTU (NG / LP) |
Power / Fuel
| Gas type preset | Natural gas 15 mbar (USA) † |
|---|---|
| Plug Type | 120V-3 prong † |
| Amps | 15 A |
| Volts | 120 V |
Features
| Total LP BTUs | 45200 BTU |
|---|---|
| ExtraLow® Burners | Yes † |
| Alternative Gas Type (Nozzle Set Included) | Liquid gas 27.5 mbar (USA) † |
| Surface Materials | Stainless Steel † |
| Grate Materials | Cast Iron with Rubber Feet † |
| Location of Control Panel | Front † |
| Pedestal Star® Burners | Yes † |
| Special Features | Reignition, Extra low power setting † |
| Griddle | No † |
| Home Connect® WiFi-enabled | No † |
| Included Accessories | 3 x cast iron pan support † |
Warranty
| Limited warranty (parts & labor) | 2 years |
|---|
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · SGSXP305TS
- Installation instructions (PDF) Thermador · SGSXP305TS
- Use & care manual (PDF) Thermador · SGSXP305TS
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Thermador, model SGSXP305TS).
