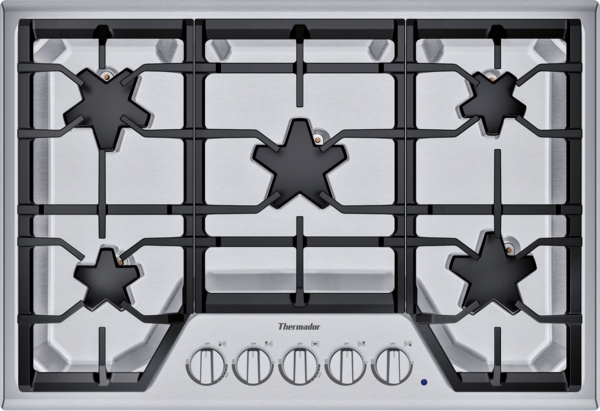

Masterpiece®, Gas Cooktop, 30'', Stainless Steel, SGSX305TS
Brand: Thermador | Model: SGSX305TS | Color: Stainless steel
Price: $2,449
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.
SGSX305TS, Gas Cooktop
Innovation Patented Star® Burner provides superior flame coverage for faster and more even pan heating Two ExtraLow®Select simmer burners provide precise simmering capabilities Performance 30" - 5 burner gas cooktop provides functionality of a 36" cooktop in a compact kitchen environment Powerful 16,000 BTU center burner Sealed burners prevent spills from entering the burner box Continuous grates allow pots and pans to move effortlessly across the cooktop Electronic re-ignition will automatically re-ignite the burner in case the flame goes out Knobs feature a safety "push to turn" system Burner "On" indicator light STAR-K Sabbath compliant Design Seamless stainless steel burner pan makes for simpler surface cleaning High-grade, quality die cast metal knobs
Specifications & Dimensions

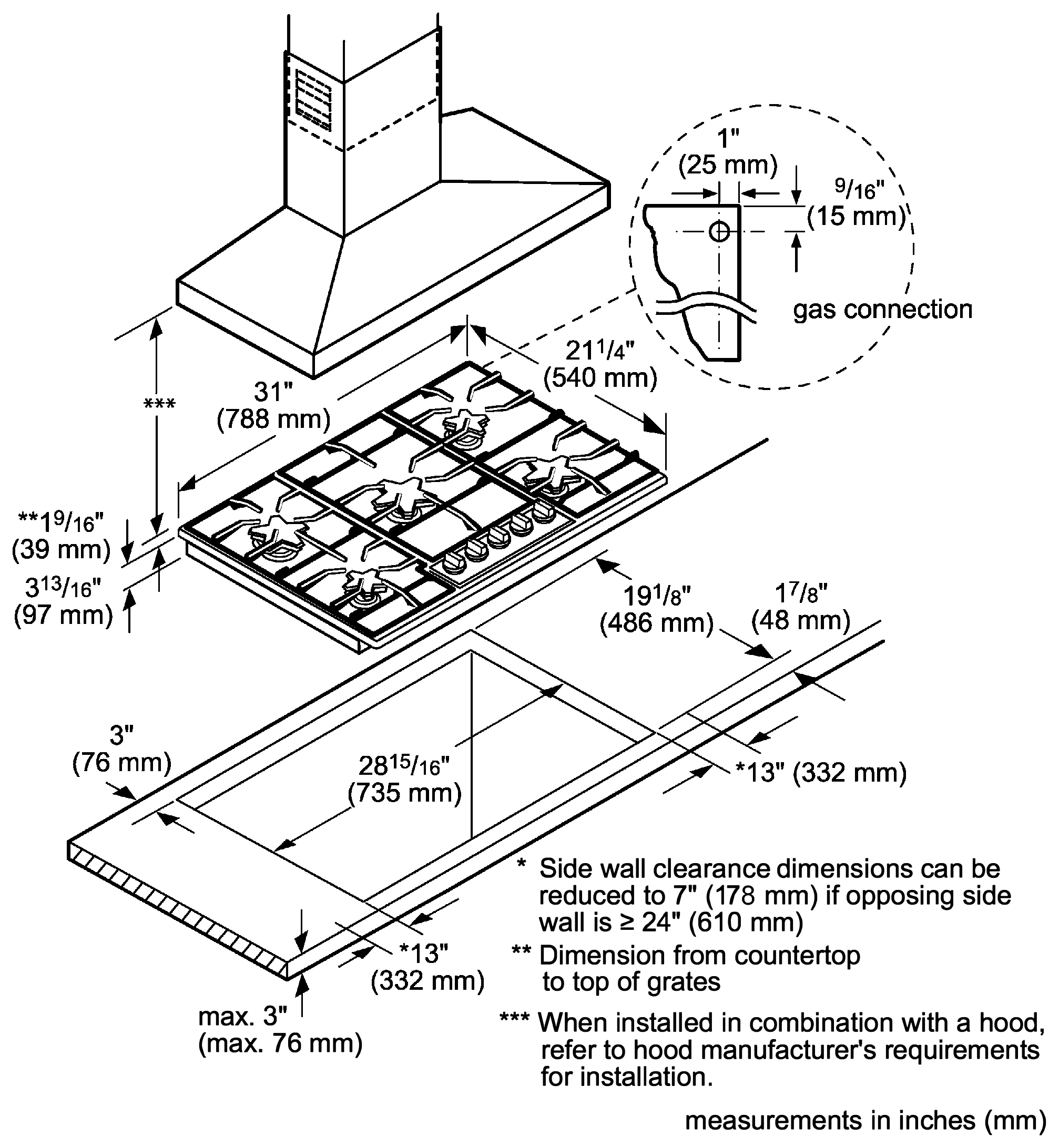

Dimension drawing
Dimensions
| Width | 31 in |
|---|---|
| Depth | 21 1/4 in |
Cutout
| Cutout height | 3 13/16 in |
|---|---|
| Cutout width | 28 15/16 in |
| Cutout depth | 19 1/8 in |
Capacity & Performance
| Number of Gas Burners | 5 † |
|---|---|
| Front left burner | 8,000 / 6,000 BTU (NG / LP) |
| Back left burner | 10,000 / 9,100 BTU (NG / LP) |
| Center burner | 16,000 / 15,000 BTU (NG / LP) |
| Back right burner | 8,000 / 6,000 BTU (NG / LP) |
| Front right burner | 10,000 / 9,100 BTU (NG / LP) |
Power / Fuel
| Gas type preset | Natural gas 15 mbar (USA) † |
|---|---|
| Plug Type | 120V-3 prong † |
| Amps | 15 A |
| Volts | 120 V |
Features
| Total LP BTUs | 45200 BTU |
|---|---|
| ExtraLow® Burners | Yes † |
| Alternative Gas Type (Nozzle Set Included) | Liquid gas 27.5 mbar (USA) † |
| Surface Materials | Stainless Steel † |
| Grate Materials | Cast Iron with Rubber Feet † |
| Location of Control Panel | Front † |
| Pedestal Star® Burners | No † |
| Sealed Burners | Yes |
| Special Features | Reignition † |
| Griddle | No † |
| Home Connect® WiFi-enabled | No † |
| Included Accessories | 3 x cast iron pan support † |
Warranty
| Limited warranty (parts & labor) | 2 years |
|---|
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · SGSX305TS
- Installation instructions (PDF) Thermador · SGSX305TS
- Use & care manual (PDF) Thermador · SGSX305TS
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Thermador, model SGSX305TS).
