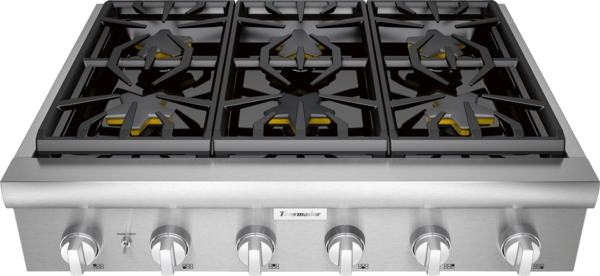

Gas Rangetop, 36'', Stainless Steel, PCG366W
Brand: Thermador | Model: PCG366W | Color: Stainless steel
Price: $4,999
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.
PCG366W, Gas Rangetop
Innovation Exclusive, patented Star® Burner – most even heating, unsurpassed flame coverage Raised pedestal burner and porcelain maintop for effortless cleaning Performance Professional style, continuous cast iron grates Continuous porcelain, easy to clean cooking surface Electronic re-ignition will automatically re-ignite the burner in case the flame goes out ExtraLow® feature provides a wide range of temperature control, perfect for simmering delicate sauces Design Bold Professional design Patented Pedestal Star® Burner with QuickClean Base™ Restaurant style metal knobs Every front burner 18,000 BTU (NG)
Specifications & Dimensions

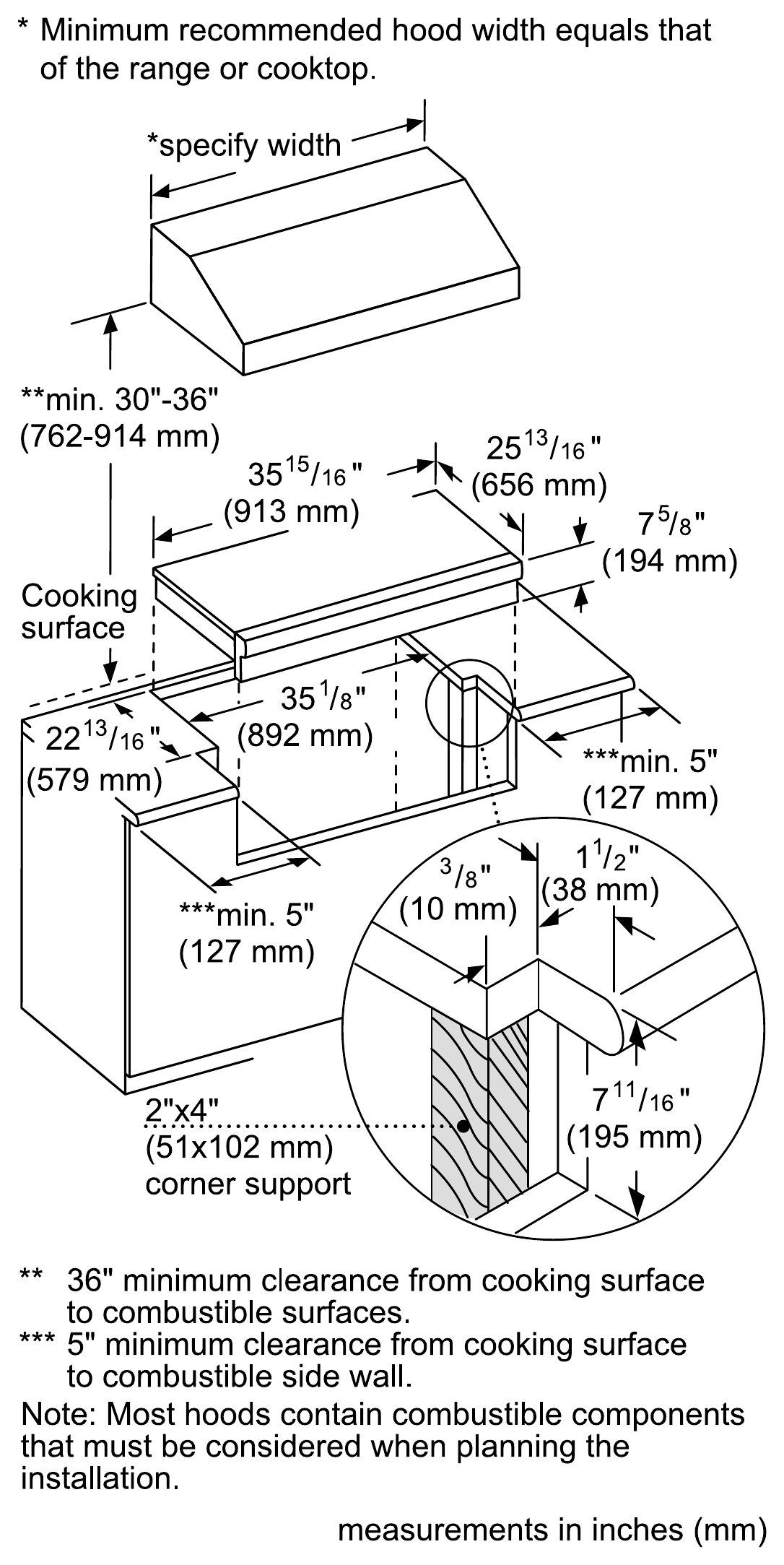

Dimension drawing
Dimensions
| Width | 35 15/16 in |
|---|---|
| Depth | 25 13/16 in |
Cutout
| Cutout width | 35 1/8 in |
|---|
Capacity & Performance
| Number of Gas Burners | 6 |
|---|---|
| Front left burner | 18,000 BTU (NG) |
| Back left burner | 15,000 BTU (NG) |
| Back center burner | 15,000 BTU (NG) |
| Front center burner | 18,000 BTU (NG) |
| Back right burner | 15,000 BTU (NG) |
| Front right burner | 18,000 BTU (NG) |
Power / Fuel
| Plug Type | 120V-3 prong † |
|---|---|
| Volts | 120 V |
Features
| ExtraLow® Burners | Yes † |
|---|---|
| Surface Materials | Porcelain, Steel † |
| Grate Materials | Cast Iron with Rubber Feet † |
| Location of Control Panel | Front † |
| Sealed Burners | Yes |
| Special Features | Reignition † |
| Griddle | No † |
| ADA Compliant (When Installed to ADA requirements) | No † |
| Home Connect® WiFi-enabled | No † |
| Included Accessories | 3 x cast iron pan support, 1 x island trim † |
Warranty
| Limited warranty (parts & labor) | 2 years |
|---|
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · PCG366W
- Installation instructions (PDF) Thermador · PCG366W
- Use & care manual (PDF) Thermador · PCG366W
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Thermador, model PCG366W).
