Freedom®, Under Counter Combo Drawer Refrigerator/Freezer, 24'', Panel Ready, T24UC905DP
Brand: Thermador | Model: T24UC905DP
Price: $4,349
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.
T24UC905DP, Under Counter Combo Drawer Refrigerator/Freezer
Specifications & Dimensions

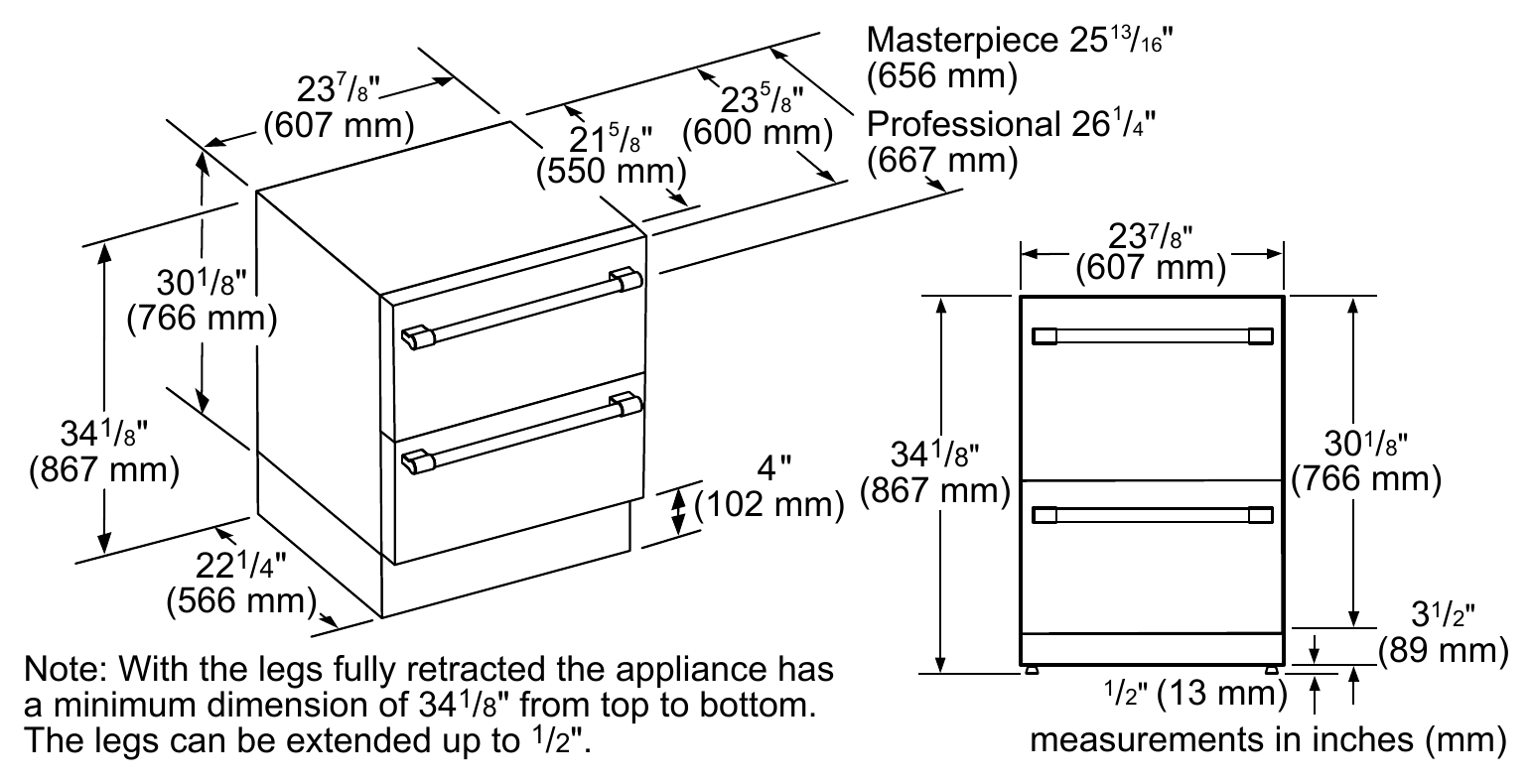

Dimension drawing
The installation guide lists cutout dimension ranges. Confirm cutout dimensions against the installation guide before preparing the cabinet opening. Installation instructions (PDF)
Dimensions
| Height | 34 1/8 in |
|---|---|
| Width | 23 7/8 in |
| Depth | 23 5/8 in |
| Net Weight | 144.5 lb |
| Gross Weight | 155.5 lb |
Cutout
| Cutout height | 34 1/2 – 35 1/4 in |
|---|---|
| Cutout width | 24 in |
| Cutout depth | 24 in |
Capacity & Performance
| Total Unit Gross Capacity | 4.3 cu. ft. |
|---|---|
| Refrigerator Gross Capacity | 2.2 cu. ft. † |
| Freezer Gross Capacity | 2.1 cu. ft. † |
| Ice Storage Capacity | 11 lb † |
| Ice Production Per 24 Hours | 5.2 lb † |
Features
| Panel Ready | Yes, Panel and Handle Sold Separately † |
|---|---|
| ENERGY STAR® certified | Yes |
| Included Accessories | 1 x cartridge for water filtering system, 1 x Ice storage container, small † |
| Water Filter | Yes † |
| Ice Maker | Yes |
| SuperCool | Yes † |
| SuperFreeze® | No † |
| Door Open Alarm Fridge | Yes |
| EcoMode | No † |
| Number of Adjustable Glass Shelves | 0 † |
| Number of Refrigerator Door Bins | 0 † |
| Sabbath Mode | Yes |
| Home Connect® WiFi-enabled | No † |
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · T24UC905DP
- Installation instructions (PDF) Thermador · T24UC905DP
- Use & care manual (PDF) Thermador · T24UC905DP
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Thermador, model T24UC905DP).
