Masterpiece®, Double Steam Wall Oven, 30'', MEDS302BS
Brand: Thermador | Model: MEDS302BS | Color: Stainless steel
Price: $10,199
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Check store for availability. Your card is authorized and will be charged once the store confirms availability. The store will call to arrange delivery or shipping.
Delivery within 100 miles of our store; we'll call to schedule.
MEDS302BS, Double Steam Wall Oven
Specifications & Dimensions

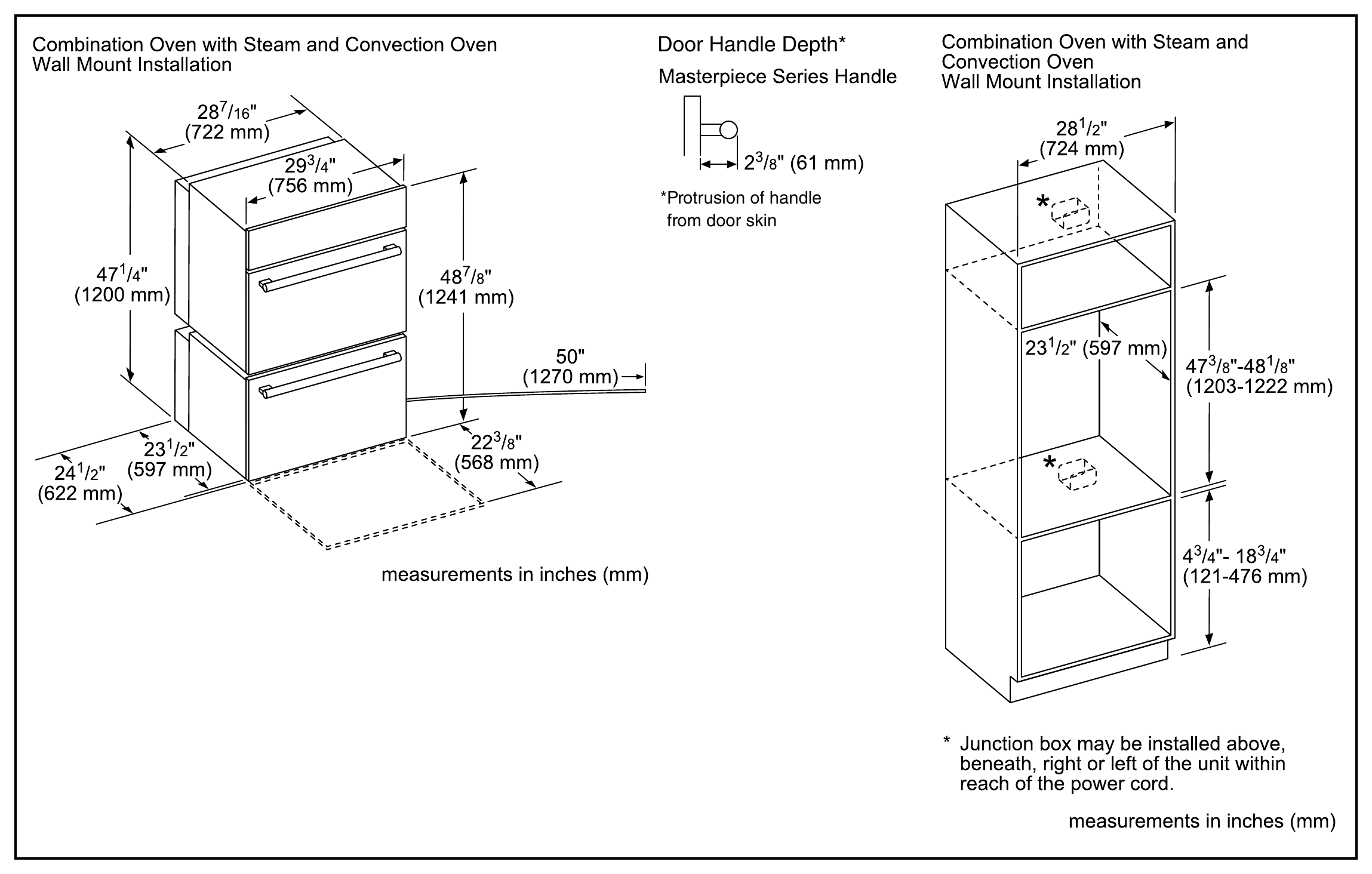

Dimension drawing
The installation guide lists cutout dimension ranges. Confirm cutout dimensions against the installation guide before preparing the cabinet opening. Installation instructions (PDF)
Dimensions
| Height | 48 7/8 in |
|---|---|
| Width | 29 3/4 in |
Cutout
| Cutout width | 28 1/2 in (standard install; flush install differs, see spec sheet) |
|---|
Capacity & Performance
| Number of Cooking Modes | 17 † |
|---|---|
| Total Number of Cooking Modes Primary Cavity | 17 † |
| Cavity Capacity | 4.5 cu. ft. |
| Cavity Capacity Second Cavity | 2.8 cu. ft. |
Power / Fuel
| Volts | 240/208 V |
|---|---|
| Amps | 40 A |
Features
| Color | Stainless Steel † |
|---|---|
| Cleaning System | Self Clean † |
| Door Hinge | Drop Down Door † |
| Location of secondary cavity | Bottom † |
| Sensors | Multi-Point Temperature Meat Probe † |
| Rotisserie | Yes † |
| Water Intake | Removable Water Tank † |
| Door Color Material | Stainless Steel, Grey Glass † |
| Door Opening | Drop Down † |
| Handle type | Masterpiece® Series † |
| Air Fry Capable | Yes (Special accessory available separately) † |
| Fast Pre-Heat | Yes † |
| SoftClose® Door | Yes † |
| ADA Compliant (When Installed to ADA requirements) | No † |
| Sabbath Mode | Yes |
| Home Connect® WiFi-enabled | Yes † |
| Home Connect® Features | Access Recipes, Remote Monitoring and Control † |
Warranty
| Limited warranty (parts & labor) | 2 years |
|---|
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · MEDS302BS
- Installation instructions (PDF) Thermador · MEDS302BS
- Use & care manual (PDF) Thermador · MEDS302BS
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Thermador, model MEDS302BS).
