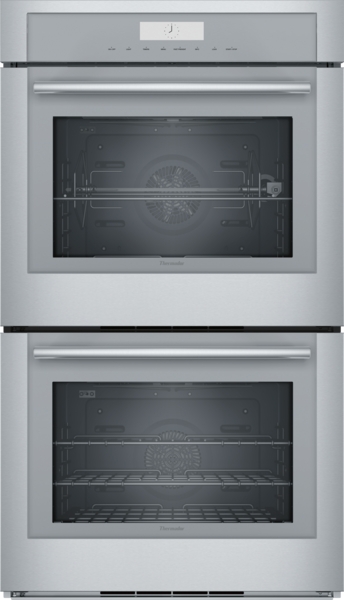

Masterpiece®, Double Wall Oven, 30'', MED302WS
Brand: Thermador | Model: MED302WS | Color: Stainless steel
Price: $8,699
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.
MED302WS, Double Wall Oven
Innovation 16 Cooking modes include Rotisserie, Max Broil, Convection Broil, Convection Roast, Pizza, True Convection and more Convection multi-rack mode gives uniform baking results even when using all 3 racks simultaneously Four Full Access® telescopic racks holds up to 45 pounds, integrated easy grip handle Temperature offset allows you to adjust the temperature in 1° increments for more accurate cooking results. Fast cleaning options: 2-hour self-clean mode for light cleaning or 4-hour mode for deep cleaning Performance Third Element Convection offers precise airflow for cooking on multiple levels without flavor transfer Multi-point Temperature Meat Probe measures the temperature of your dish from three different points for more accurate cooking results Powerful, 12-pass bake and broil elements SoftClose® hinges prevent slamming and ensure ultra-smooth closing Includes two timers; counts down kitchen timer and countdown oven timer for added convenience Design Specially crafted gray glass on stainless steel for a luxurious look and finish Designed for flexibility -- standard or flush installation into kitchen cabinets Elegant halogen lighting illuminates the oven cavity Large oven door window for maximum viewing Removable rack hangers for easier to clean
Specifications & Dimensions

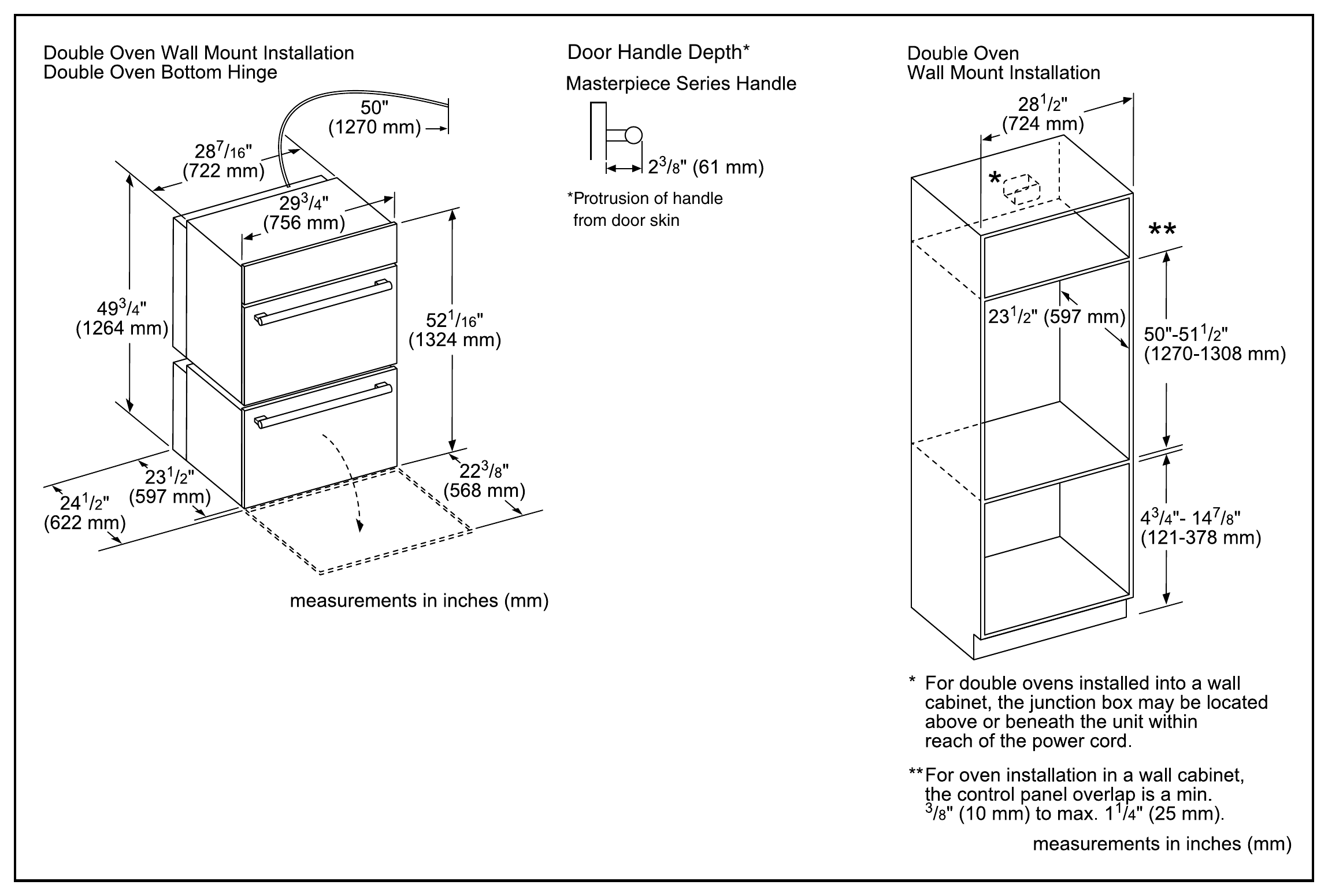

Dimension drawing
The installation guide lists cutout dimension ranges. Confirm cutout dimensions against the installation guide before preparing the cabinet opening. Installation instructions (PDF)
Dimensions
| Height | 52 1/16 in |
|---|---|
| Width | 29 3/4 in |
| Depth | 24 1/2 in |
Cutout
| Cutout width | 28 1/2 in (standard install; flush install differs, see spec sheet) |
|---|---|
| Cutout depth | 23 1/2 in (standard install; flush install differs, see spec sheet) |
Capacity & Performance
| Number of Cooking Modes | 16 † |
|---|---|
| Total Number of Cooking Modes Primary Cavity | 16 † |
| Total Number of Cooking Modes Secondary Cavity | 13 † |
| Cavity Capacity | 4.5 cu. ft. |
| Cavity Capacity Second Cavity | 4.5 cu. ft. |
Power / Fuel
| Volts | 240/208 V |
|---|---|
| Amps | 40 A |
Features
| Color | Stainless Steel † |
|---|---|
| Cleaning System | Self Clean † |
| Door Hinge | Drop Down Door † |
| Location of secondary cavity | Bottom † |
| Sensors | Multi-Point Temperature Meat Probe † |
| Door Color Material | Stainless Steel, Grey Glass † |
| Door Opening | Drop Down † |
| Handle type | Masterpiece® Series † |
| Air Fry Capable | Yes (Special accessory available separately) † |
| Fast Pre-Heat | Yes † |
| SoftClose® Door | Yes † |
| ADA Compliant (When Installed to ADA requirements) | No † |
| Sabbath Mode | Yes |
| Home Connect® WiFi-enabled | Yes † |
| Home Connect® Features | Access Recipes, Remote Monitoring and Control † |
Warranty
| Limited warranty (parts & labor) | 2 years |
|---|
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · MED302WS
- Installation instructions (PDF) Thermador · MED302WS
- Use & care manual (PDF) Thermador · MED302WS
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Thermador, model MED302WS).
