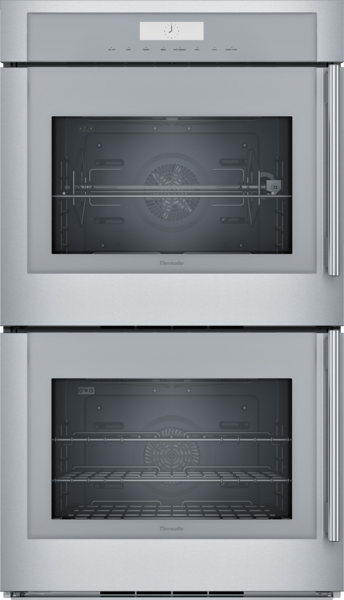

Masterpiece®, Double Wall Oven, 30'', MED302LWS
Brand: Thermador | Model: MED302LWS | Color: Stainless steel
Price: $9,499
Buy now online. Ordered for you: we order it from the manufacturer after purchase. Unopened, undelivered items can be returned within 30 days (25% restocking fee). No returns on installed, special-order or damaged items. Returns policy
Delivery within 100 miles of our store; we'll call to schedule.
MED302LWS, Double Wall Oven
Innovation Side opening door for easy access to oven cavity 16 Cooking modes include Rotisserie, Max Broil, Convection Broil, Convection Roast, Pizza, True Convection and more Convection multi-rack mode gives uniform baking results even when using all 3 racks simultaneously Four Full Access® telescopic racks holds up to 45 pounds, integrated easy grip handle Temperature offset allows you to adjust the temperature in 1° increments for more accurate cooking results. Fast cleaning options: 2-hour self-clean mode for light cleaning or 4-hour mode for deep cleaning Performance Third Element Convection offers precise airflow for cooking on multiple levels without flavor transfer Multi-point Temperature Meat Probe measures the temperature of your dish from three different points for more accurate cooking results Powerful, 12-pass bake and broil elements SoftClose® hinges prevent slamming and ensure ultra-smooth closing Includes two timers; counts down kitchen timer and countdown oven timer for added convenience Design Specially crafted gray glass on stainless steel for a luxurious look and finish Designed for flexibility -- standard or flush installation into kitchen cabinets Elegant halogen lighting illuminates the oven cavity Large oven door window for maximum viewing Removable rack hangers for easier to clean
Specifications & Dimensions

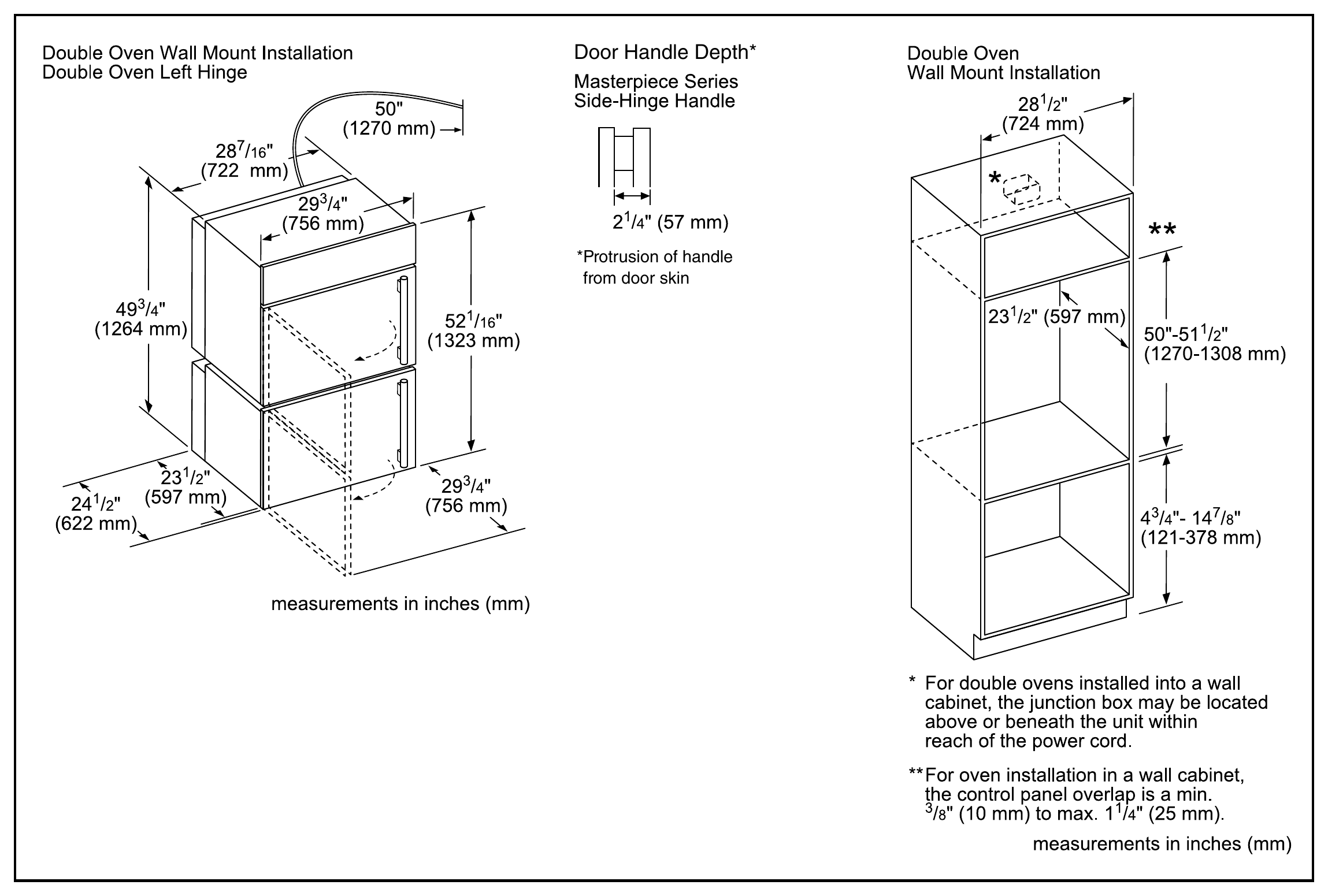

Dimension drawing
The installation guide lists cutout dimension ranges. Confirm cutout dimensions against the installation guide before preparing the cabinet opening. Installation instructions (PDF)
Dimensions
| Height | 52 1/16 in |
|---|---|
| Width | 29 3/4 in |
| Depth | 24 1/2 in |
Cutout
| Cutout width | 28 1/2 in (standard install; flush install differs, see spec sheet) |
|---|---|
| Cutout depth | 23 1/2 in (standard install; flush install differs, see spec sheet) |
Capacity & Performance
| Number of Cooking Modes | 16 † |
|---|---|
| Total Number of Cooking Modes Primary Cavity | 16 † |
| Total Number of Cooking Modes Secondary Cavity | 13 † |
| Cavity Capacity | 4.5 cu. ft. |
| Cavity Capacity Second Cavity | 4.5 cu. ft. |
Power / Fuel
| Volts | 240/208 V |
|---|---|
| Amps | 40 A |
Features
| Color | Stainless Steel † |
|---|---|
| Cleaning System | Self Clean † |
| Door Hinge | Left † |
| Location of secondary cavity | Bottom † |
| Sensors | Multi-Point Temperature Meat Probe † |
| Door Color Material | Stainless Steel, Grey Glass † |
| Door Opening | Side Opening Door † |
| Handle type | Masterpiece® Series † |
| Air Fry Capable | Yes (Special accessory available separately) † |
| Fast Pre-Heat | Yes † |
| SoftClose® Door | No † |
| ADA Compliant (When Installed to ADA requirements) | No † |
| Sabbath Mode | Yes |
| Home Connect® WiFi-enabled | Yes † |
| Home Connect® Features | Access Recipes, Remote Monitoring and Control † |
Warranty
| Limited warranty (parts & labor) | 2 years |
|---|
† From the Thermador product page (not cross-checked against the specification sheet).
Documents
- Specification sheet (PDF) Thermador · MED302LWS
- Installation instructions (PDF) Thermador · MED302LWS
- Use & care manual (PDF) Thermador · MED302LWS
Confirm final cutout dimensions against the manufacturer's installation guide before building cabinetry.
Source: Official product page, Official spec sheet PDF (Thermador, model MED302LWS).
